- Rated: 36V250W
- Brake: Compatible with V-brake & disc brake; 6 built-in disc mounting holes after removing the protective white sticker
- Connector: Waterproof 9-pin motor plug
- Built-in internal speed sensor
- Front fork dropout: 100mm
- Gear Reduction Ratio:
- 328 RPM → Ratio 14.2:1 (high speed, low torque for flat pavement)
- 201 RPM → Ratio 21:1 (low speed, high torque for climbing hills)
- Net Weight: 1.44KG
- Accessories: Motor wire + fixing screws included
- Appearance: Black housing
- Spoke Hole: 13G, optional 20H /28H/32H /36H
- Two speed versions optional:
✔ 201RPM: High torque, perfect for hilly terrain
✔ 260RPM: High speed, great for flat roads✔ 328RPM: High speed, great for flat roads
- Fits rim size: 14″,16″,20″,24″,26″,27.5″,28″,700C
Packing List
1 × Hub Motor
1 × Full Set Mounting Screws
1 × Waterproof 9Pin Motor Cable
Product Introduction

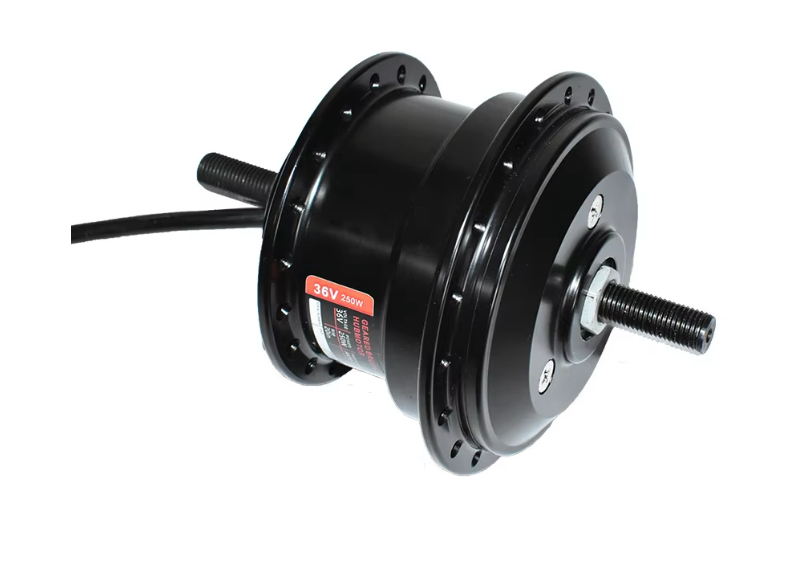

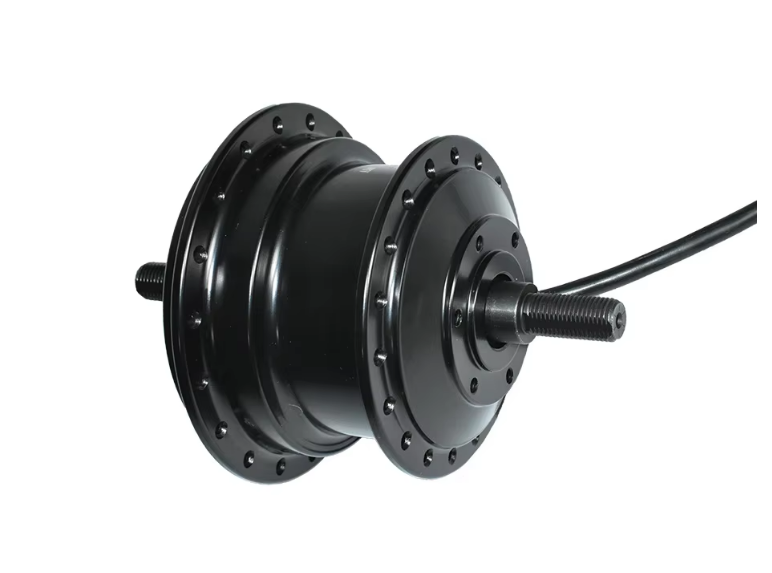

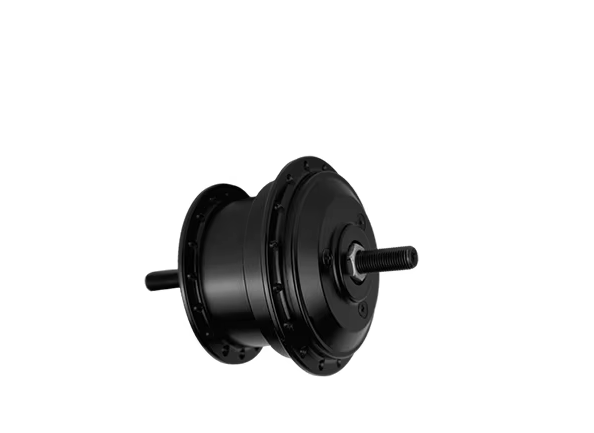

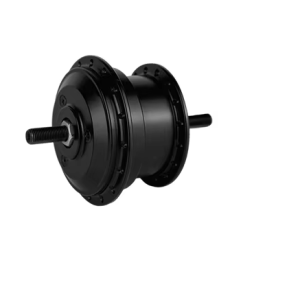

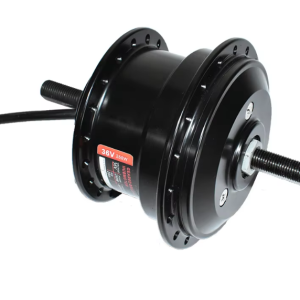

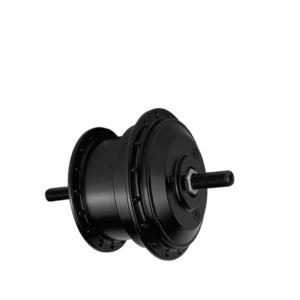

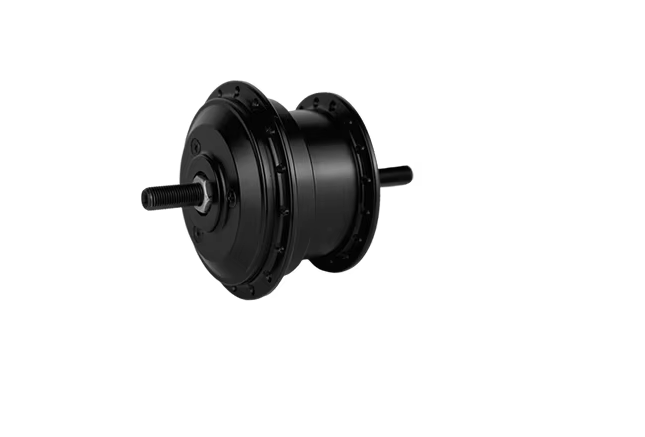

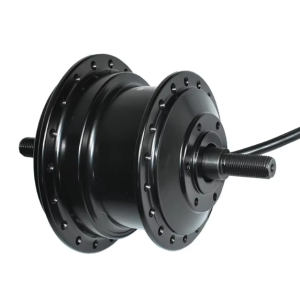

AKM series hub motors are highly popular among ebike DIY modifiers. Featuring lightweight construction, stable quality and competitive pricing, it becomes one of the top options for electric bike conversion.
If you need other AKM motors or spare parts unavailable in our shop, kindly contact us for customized procurement service.
