Motor (M560) Features
- Rated Voltage: 48V
- Rated Power: 500W
- Max Torque: 140Nm, strong climbing & heavy load capacity
- Torque + cadence dual sensors, smooth & natural pedal assist
- Lightweight: 3.3kg, magnesium alloy housing, IPX6 waterproof
- Standard 68mm bottom bracket, fits 20″–29″ bikes (MTB/fat/cargo)
- CAN-Bus communication, stable signal, multiple speed limit settings
DPC245 Display Functions
- TFT color screen, high contrast, clear under strong sunlight
- Real-time data: speed, battery, mileage, power, error codes
- 6 PAS levels, walk assist, headlight control
- Bluetooth 5.0 (connect with Bafang GO App)
- Type‑C USB 5V/500mA for phone charging
- IPX7 waterproof, fits 25.4/31.8/35mm handlebar
- Multi-language, plug-and-play with M560

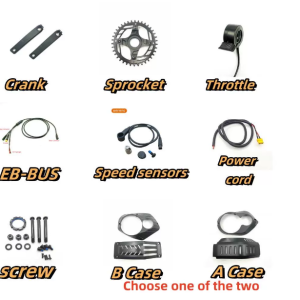

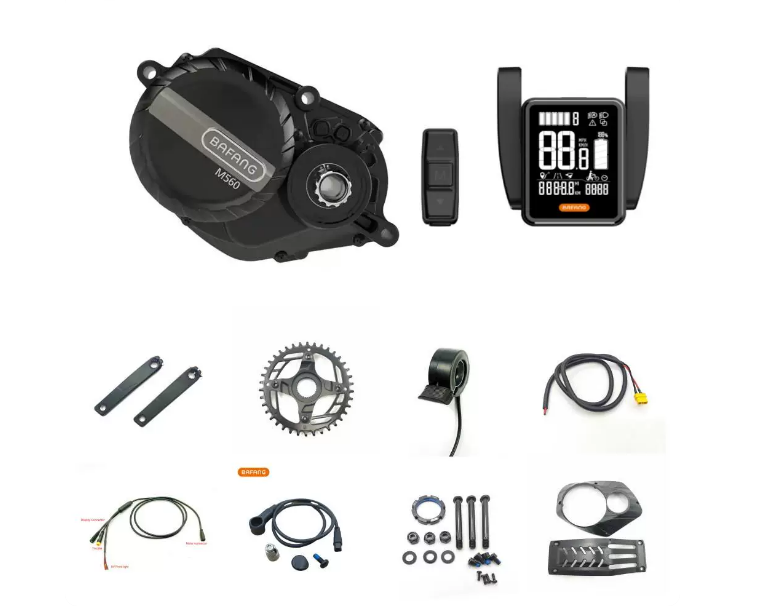

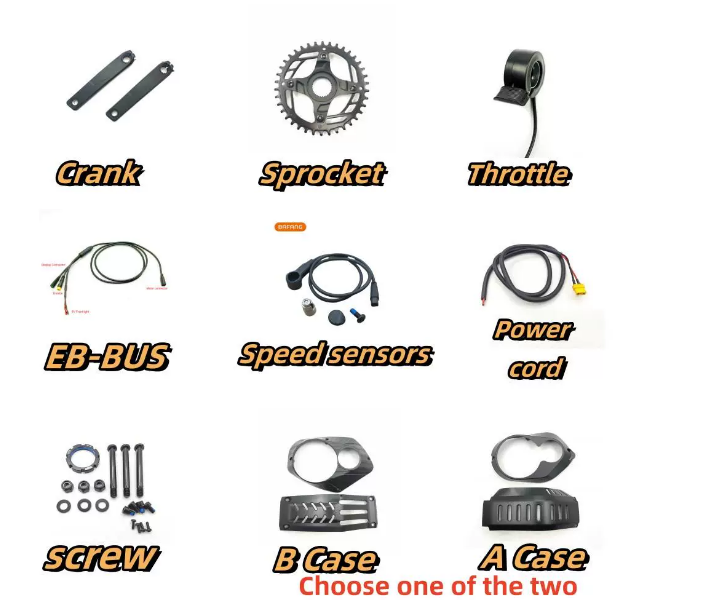

Package Includes
- M560 500W mid motor
- DPC245 CAN display + control pad
- All mounting hardware, wiring & manuals
- Complete set for direct installation
